風華0603/1608_貼片電容_片容_貼片電容器

產品名稱：風華0603/1608_貼片電容_片容_貼片電容器

所屬類別：風華0603/1608_貼片電容_片容_貼片電容器

產品簡介：貼片電容風華0603/1608，片容風華0603/1608，貼片電容器風華0603/1608電?話：0769-89917065

詳細介紹

風華06031608

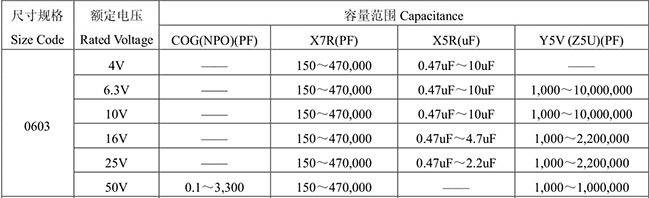

風華0603/1608參數

品牌	FH/風華	型號	0603/1608	介質材料	陶瓷(瓷介)
應用范圍	低壓	外形	方塊狀	功率特性	小功率
頻率特性	低頻	調節方式	固定	引線類型	無引線
允許偏差	±5（%）	耐壓值	50（V）	等效串聯電阻(ESR)	0（mΩ）
標稱容量	0.47uF～10（uF）	損耗	0	額定電壓	4（V）
絕緣電阻	0（mΩ）	溫度系數	0

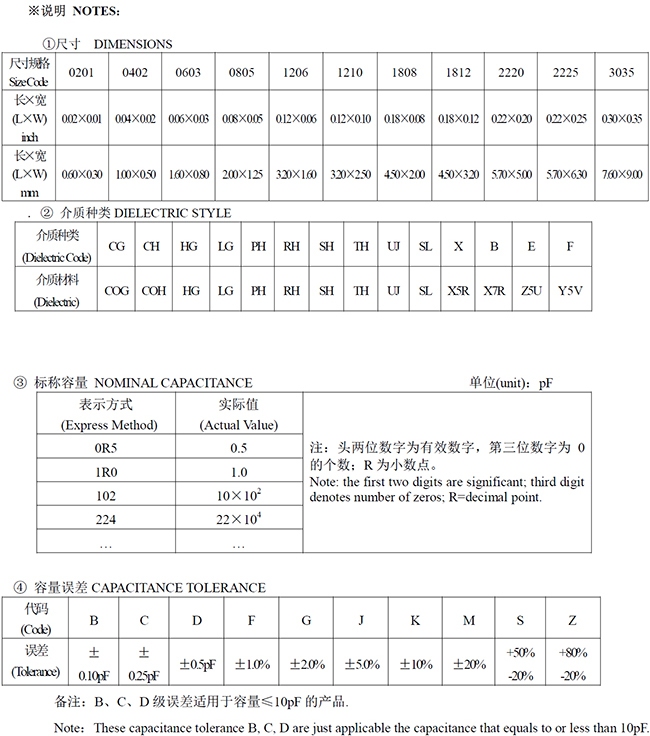

SUMMARY
● Types of Dielectric Material and Capacitor

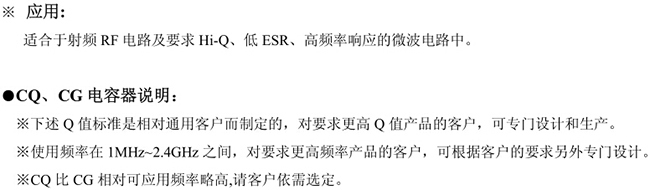

※HIGH FREQUENCY TYPE: The capacitor of this kind dielectric material is considered as ClassⅠcapacitor, including
high frequency COG、COH capacitor and temperature compensating capacitor such as HG, LG, PH, RH,SH, TH, UJ,
SL. The electrical properties of COG、COH capacitor are the most stable one and change invariablly with temperature,
voltage and time. They are suited for applications where low-losses and high-stability are required, HG， LG， PH， RH，
SH， TH， UJ， SL capacitor’s capacitance changes with temperature.They are suited for applications where low-losses
and temperature compensating circuits.

※Z5U：The capacitor made of this kind of material is considered as ClassⅡ capacitor, whose temperature characteristic
is between that of X7R and Y5V. The capacitance of this kind of capacitor is unstable and sensible to temperature and
voltage. Ideally suited for bypassing and decoupling application circuits operating with low DC bias in the environment
approaches to room temperature.※X7R、X5R：X7R、X5R material is a kind of material has high dielectric constant. The capacitor made of this kind
material is considered as Class Ⅱ capacitor whose capacitance is higher than that of class Ⅰ. These capacitors are
classified as having a semi-stable temperature characteristic and used over a wide temperature range, such in these
kinds of circuits, DC-blocking, decoupling, bypassing, frequency discriminating etc.
※Y5V：The capacitor made of this kind of material is the highest dielectric constant of all ceramic capacitors. They are
used over a moderate temperature range in application where high capacitance is required because of its unstable
temperature coefficient, but where moderate losses and capacitance changes can be tolerated. Its capacitance and
dissipation factors are sensible to measuring conditions, such as temperature and voltage, etc.
