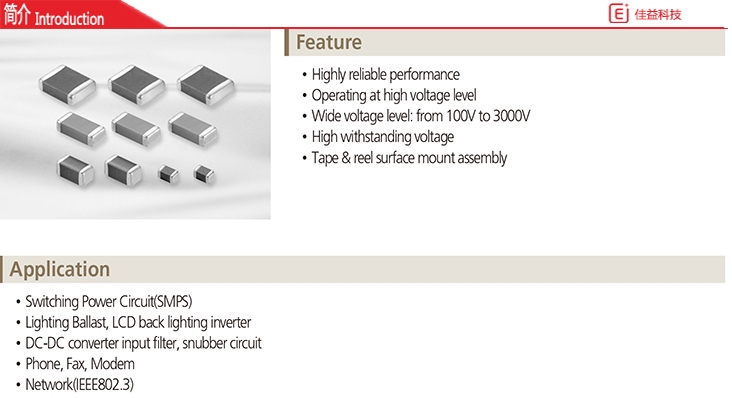

高壓三星1808/4520貼片電容基本參數：
| 品牌 | Samsung/三星 | 型號 | 1808/4520 | 介質材料 | 陶瓷(瓷介) |
| 應用范圍 | 高壓 | 外形 | 方塊狀 | 功率特性 | 小功率 |
| 頻率特性 | 低頻 | 調節方式 | 固定 | 引線類型 | 無引線 |
| 允許偏差 | ±2（%） | 耐壓值 | 3000（V） | 等效串聯電阻(ESR) | 0（mΩ） |
| 標稱容量 | 1nF~3.3nF（uF） | 損耗 | 0 | 額定電壓 | 1000（V） |
| 絕緣電阻 | 0（mΩ） | 溫度系數 | 0 |

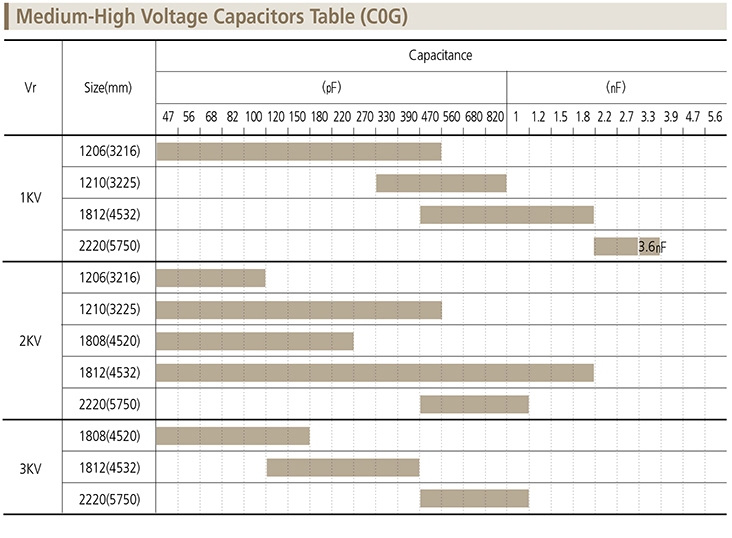

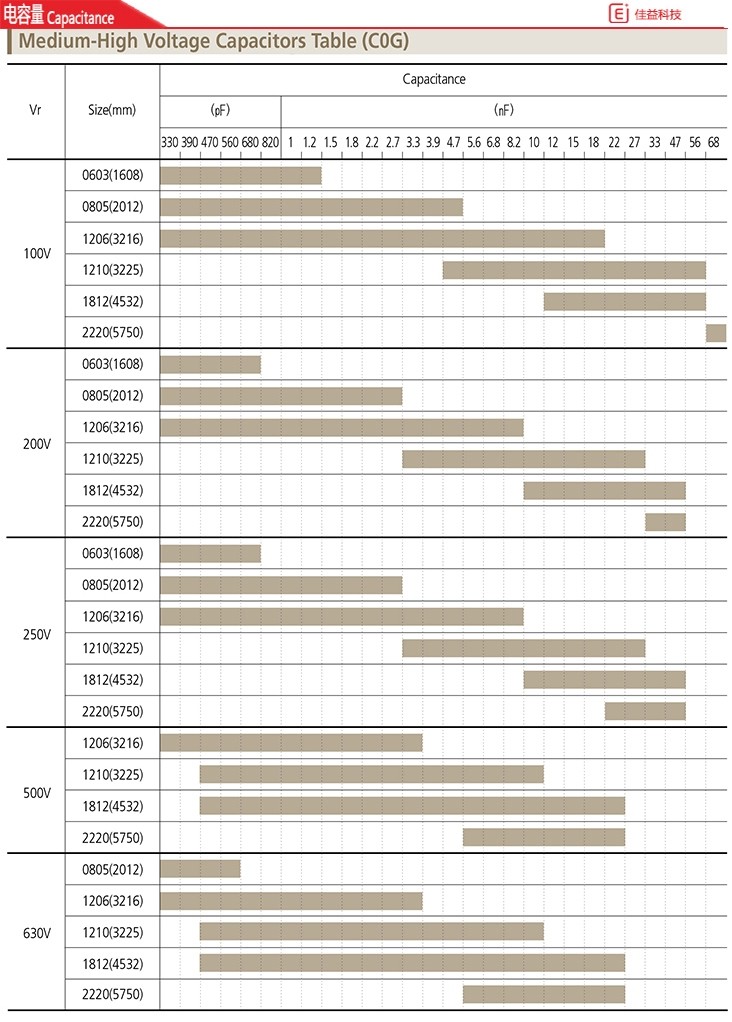

| Product Lineup (Medium-High Voltage Capacitors-COG)
| Part Number | Size Lx W (mm) | Capacitance | Rated Voltage (Vdc) | Capacitance Tolerance | Thickness Max. (mm) | |
| 26 | CL21C121JDCNNN [ | 2.00x1.25 | 120pF | 200 | ±5% | 0.95 |
| 27 | CL21C151JCANNN [ | 150pF | 100 | ±5% | 0.75 | |
| 28 | CL21C151JHFNNN 口 | 150F | 630 | ±5% | 1.35 | |
| 29 | CL21C221JCANNN ： | 220pF | 100 | ±5% | 0.75 | |
| 30 | CL21C221JDCNNN □ | 220pF | 200 | ±5% | 0.95 | |
| 31 | CL21C331JCANNN | 330pF | 100 | ±5% | 0.75 | |
| 32 | CL21C471JCCNNN | 470pF | 100 | ±5% | 0.95 | |
| 33 | CL21C561JCCNNN [ | 560pF | 100 | ±5% | 0.95 | |
| 34 | CL21C561JHFNNN 口 | 560pF | 630 | ±5% | 1.35 | |
| 35 | CL21C681JCCNNN | 680pF | 100 | ±5% | 0.95 | |
| 36 | CL21C102JCFNNN [ | InF | 100 | ±5% | 1.35 | |
| 37 | CL21C102JDFNNN [ | InF | 200 | ±5% | 1.35 | |
| 38 | CL21C272JDFNNN ： | 2.7F | 200 | ±5% | 1.35 | |
| 39 | CL21 C272 JEFNNN | 2.7F | 250 | ±5% | 1.35 | |
| 40 | CL21C472JCFNNN 口 | 4.7F | 100 | ±5% | 1.35 | |
| 1 | ⑴1C150JGFNNN [ | 3.20x1.60 | 15pF | 500 | ±5% | 1.40 |
| 2 | CL31C180JGFNNN c | 18pF | 500 | ±5% | 1.40 | |
| 3 | ⑴1C220JGFNNN [ | 22 pF | 500 | ±5% | 1.40 | |
| 4 | CL31C220JJHNNN [ | 22 pF | 2000 | ±5% | 1.80 | |
| 5 | CL31C270JGFNNN [ | 27pF | 500 | ±5% | 1.40 | |
| 6 | ⑴1C330JGFNNN [ | 33pF | 500 | ±5% | 1.40 | |
| 7 | CL31C390JGFNNN [ | 39pF | 500 | ±5% | 1.40 | |
| 8 | ⑴1C470JGFNNN [ | 47pF | 500 | ±5% | 1.40 | |
| 9 | CL31C470JHFNNN | 47pF | 630 | ±5% | 1.40 | |
| 10 | CL31C470JIFNNN [ | 47， | 1000 | ±5% | 1.40 | |
| 11 | CL31C470JJHNNN [ | 47pF | 2000 | ±5% | 1.80 | |
| 12 | ⑴1C560JGFNNN [ | 56pF | 500 | ±5% | 1.40 | |
| 13 | CL31C680JCCNNN | 68pF | 100 | ±5% | 1.00 | |
| 14 | ⑴1C680JGFNNN [ | 68pF | 500 | ±5% | 1.40 | |
| 15 | CL31C680JHFNNN | 68pF | 630 | ±5% | 1.40 | |
| 16 | CL31C680JIFNNN | 68pF | 1000 | ±5% | 1.40 | |
| 17 | CL31C820JGFNCN | 82 pF | 500 | ±5% | 1.40 | |
| 18 | CL31C101JGFNNN | 100pF | 500 | ±5% | 1.40 | |
| 19 | CL31C101JHFNNN | 100pF | 630 | ±5% | 1.40 | |
| 20 | CL31C101JIFNNN | 100pF | 1000 | ±5% | 1.40 | |
| 21 | CL31C101JJHNNN [ | 100pF | 2000 | ±5% | 1.80 | |
| 22 | CL31C121JGFNNN | 120pF | 500 | ±5% | 1.40 | |
| 23 | CL31C151JGFNNN □ | 150F | 500 | ±5% | 1.40 | |
| 24 | CL31C181JGFNNN | 180F | 500 | ±5% | 1.40 | |
| 25 | CL31C221JGFNNN | 220pF | 500 | ±5% | 1.40 | |
| 26 | CL31C271JGFNNN | 270pF | 500 | ±5% | 1.40 | |
| 27 | CL31C271JCCNNN | 270pF | 100 | ±5% | 1.00 | |
| 28 | CL31C331JGFNNN | 330pF | 500 | ±5% | 1.40 | |
| 29 | CL31C331JIHNNN [ | 330pF | 1000 | ±5% | 1.80 | |
| 30 | CL31C391JCCNNN | 390pF | 100 | ±5% | 1.00 | |
| 31 | CL31C471JGFNNN | 470pF | 500 | ±5% | 1.40 | |
| 32 | CL31C471JHFNNN | 470pF | 630 | ±5% | 1.40 | |
| 33 | CL31C471JIFNNN | 470pF | 1000 | ±5% | 1.40 | |
| 34 | CL31C561JCCNNN | 560pF | 100 | ±5% | 1.00 | |
| 35 | CL31C561JGFNNN | 560pF | 500 | ±5% | 1.40 | |
| 36 | CL31C681JGFNNN | 680pF | 500 | ±5% | 1.80 | |
| 37 | CL31C821JHHNNN | 820 pF | 630 | 5% | 1.80 |
