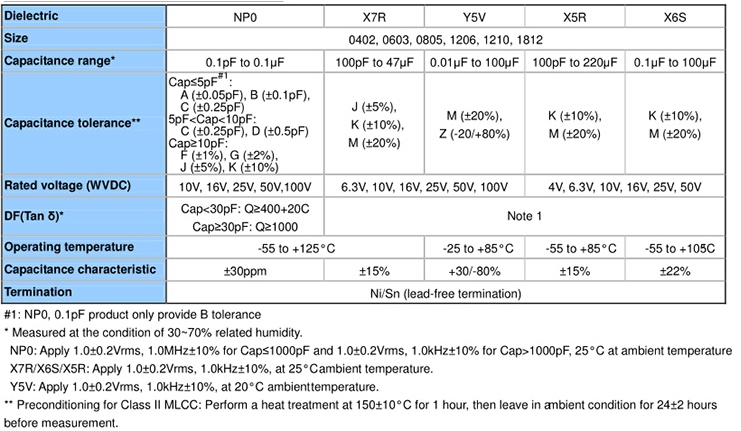

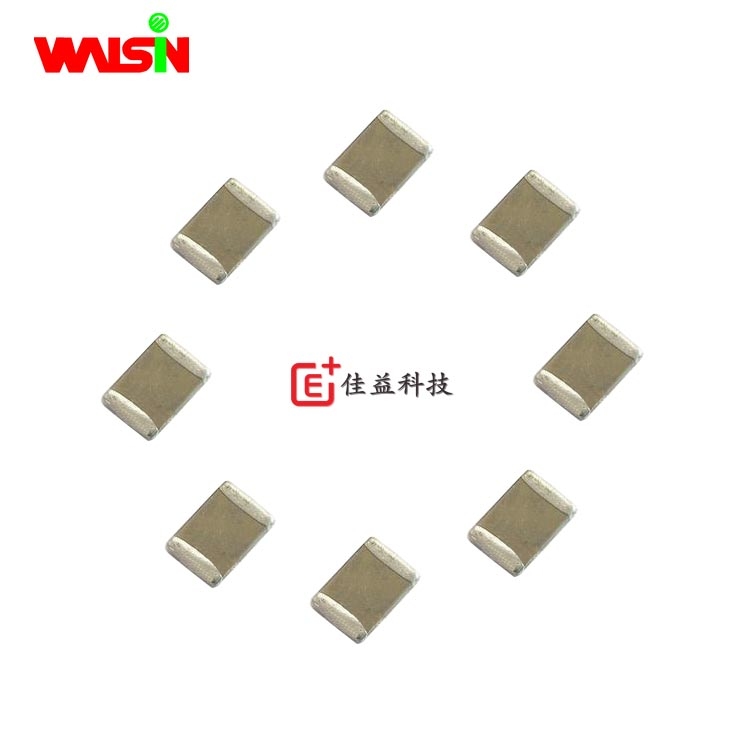

高壓華新科0603/1608貼片電容基本參數
| 品牌 | WALSIN/華新科 | 型號 | 0603/1608 | 介質材料 | 陶瓷(瓷介) |
| 應用范圍 | 高壓 | 外形 | 方塊狀 | 功率特性 | 中功率 |
| 頻率特性 | 中頻 | 調節方式 | 微調 | 引線類型 | 無引線 |
| 允許偏差 | ±2（%） | 耐壓值 | 100（V） | 等效串聯電阻(ESR) | 0（mΩ） |
| 標稱容量 | 100uF~220uF（uF） | 損耗 | 0 | 額定電壓 | 100（V） |
| 絕緣電阻 | 0（mΩ） | 溫度系數 | 0 |

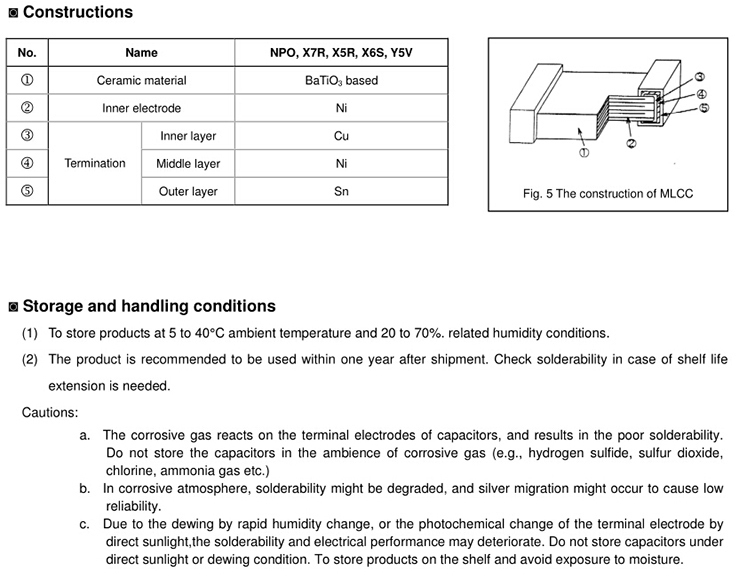

華新科高壓0603/1608 貼片電容 片容 貼片電容器關于儲存
(1) To store products at 5 to 40°C ambient temperature and 20 to 70%. related humidity conditions.
(2) The product is recommended to be used within one year after shipment. Check solderability in case of shelf life
extension is needed.
Cautions:
a. The corrosive gas reacts on the terminal electrodes of capacitors, and results in the poor solderability.
Do not store the capacitors in the ambience of corrosive gas (e.g., hydrogen sulfide, sulfur dioxide,
chlorine, ammonia gas etc.)
b. In corrosive atmosphere, solderability might be degraded, and silver migration might occur to cause low
reliability.
c. Due to the dewing by rapid humidity change, or the photochemical change of the terminal electrode by
direct sunlight,the solderability and electrical performance may deteriorate. Do not store capacitors under
direct sunlight or dewing condition. To store products on the shelf and avoid exposure to moisture.
