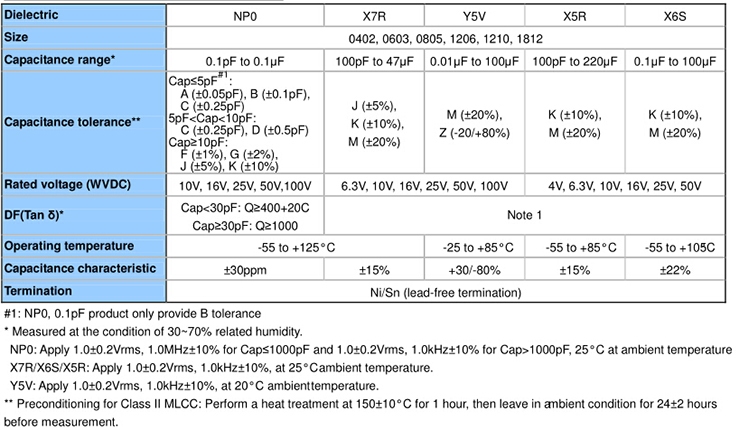

華新科0402/1005貼片電容基本參數
| 品牌 | WALSIN/華新科 | 型號 | 0402/1005 | 介質材料 | 陶瓷(瓷介) |
| 應用范圍 | 低壓 | 外形 | 方塊狀 | 功率特性 | 小功率 |
| 頻率特性 | 低頻 | 調節方式 | 固定 | 引線類型 | 無引線 |
| 允許偏差 | ±5（%） | 耐壓值 | 50（V） | 等效串聯電阻(ESR) | 0（mΩ） |
| 標稱容量 | 100pF~220uF（uF） | 損耗 | 0 | 額定電壓 | 6.3（V） |
| 絕緣電阻 | 0（mΩ） | 溫度系數 | 0 |

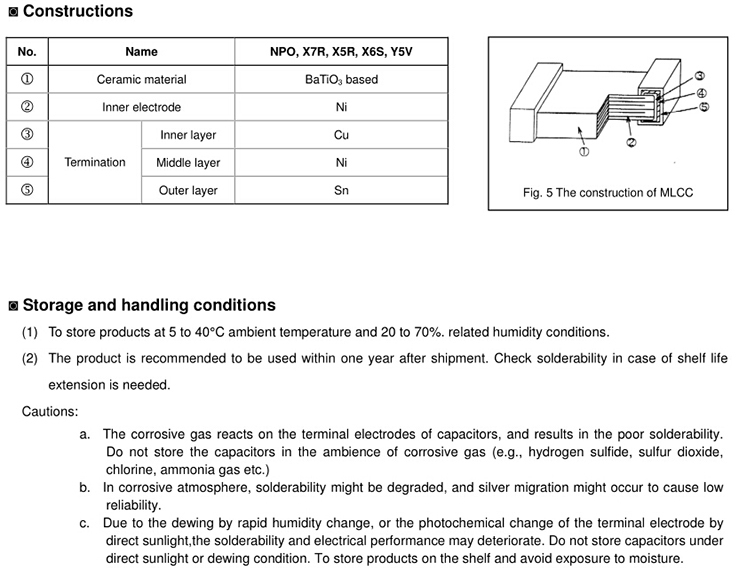

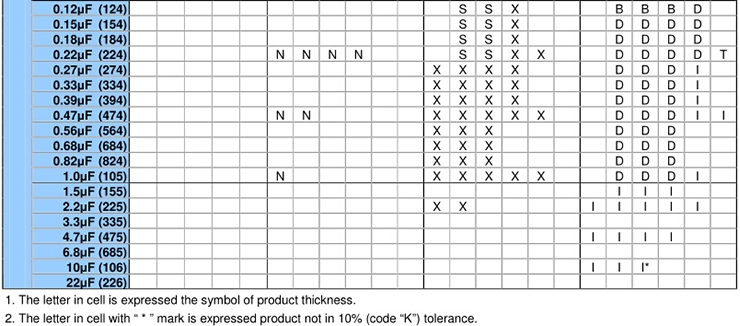

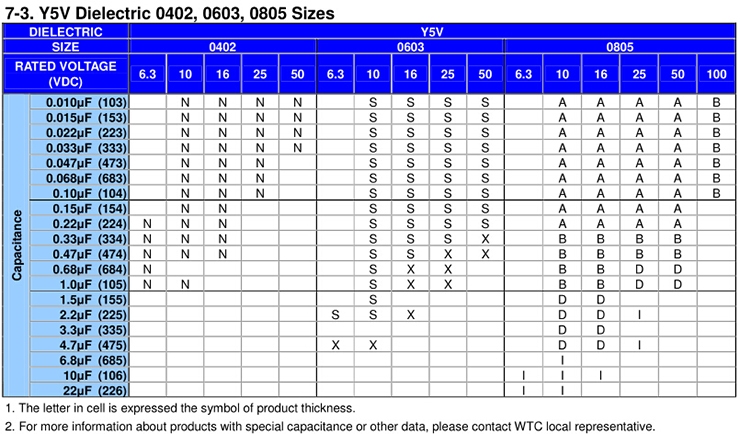

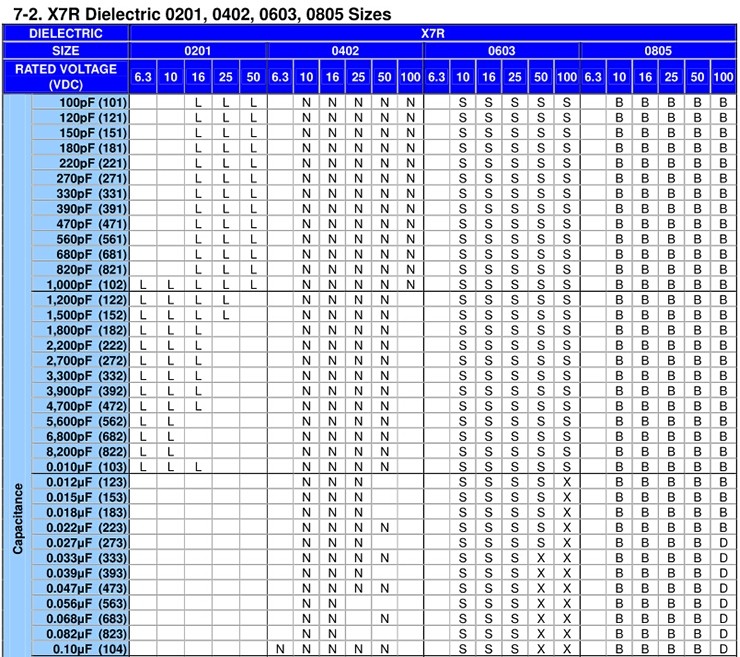

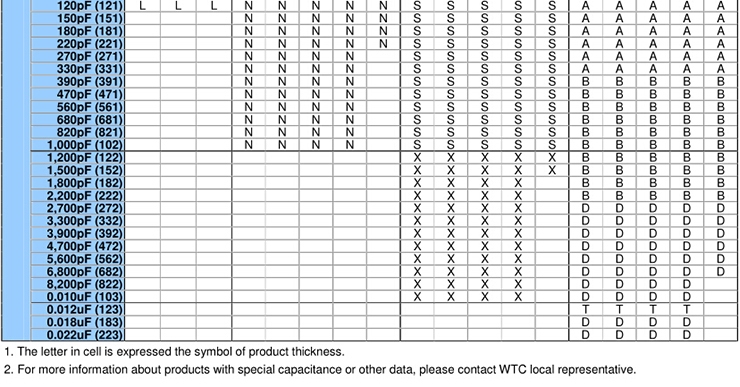

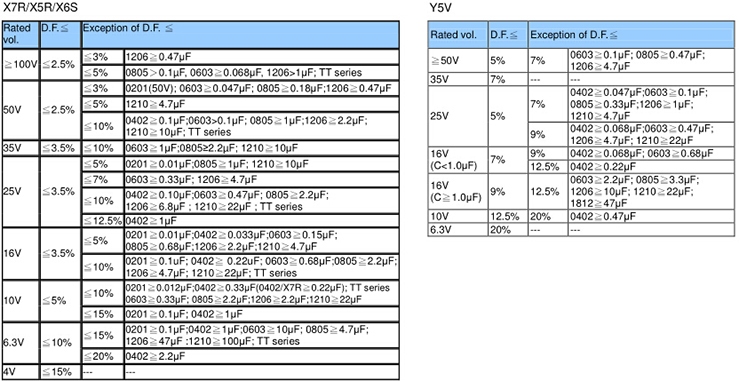

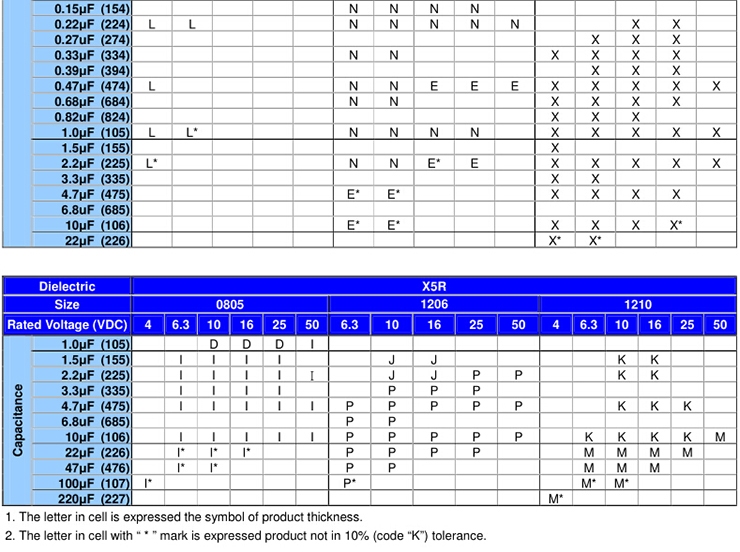

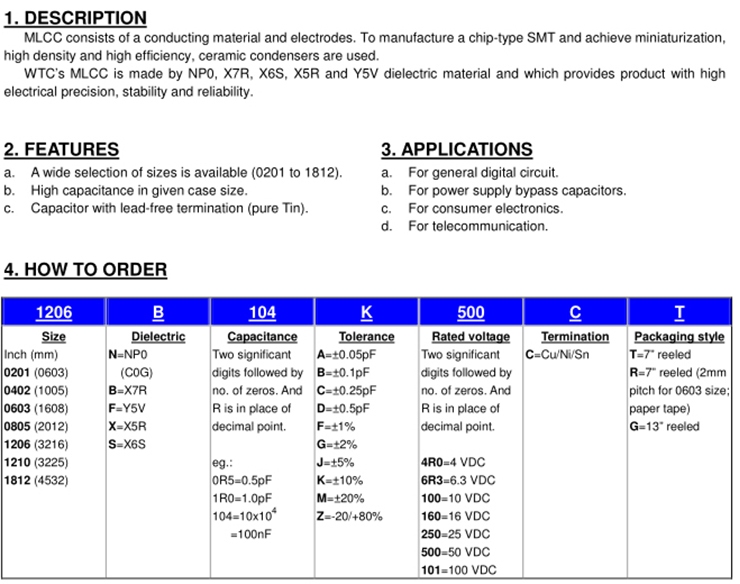

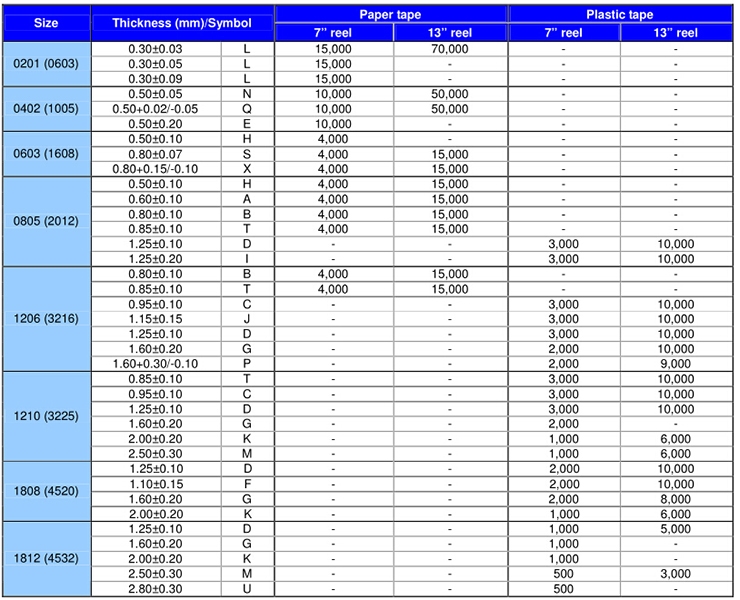

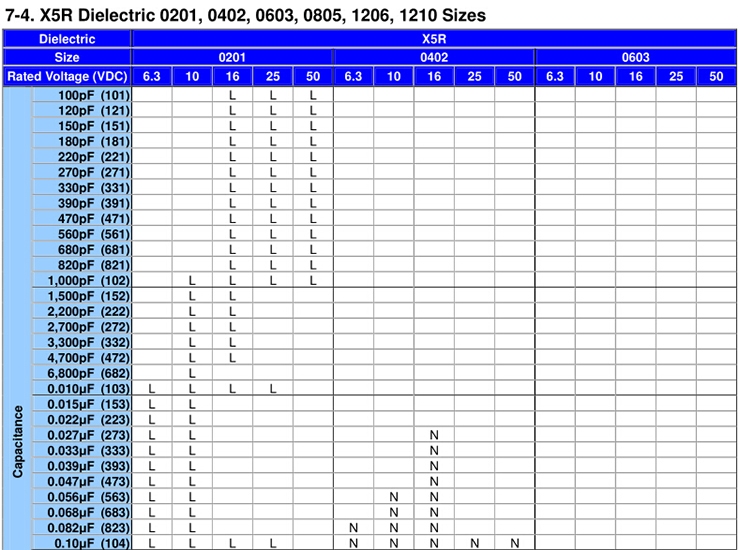

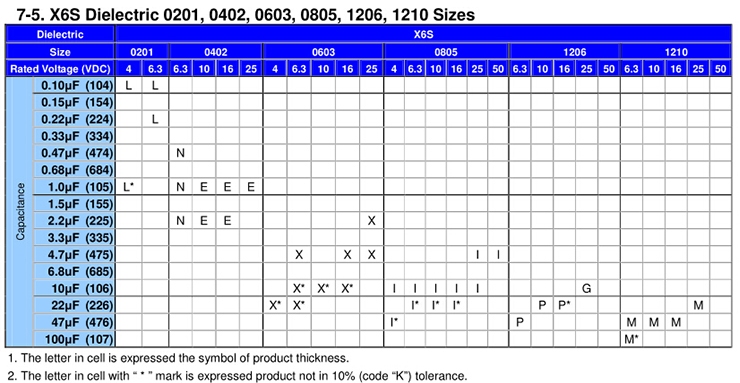

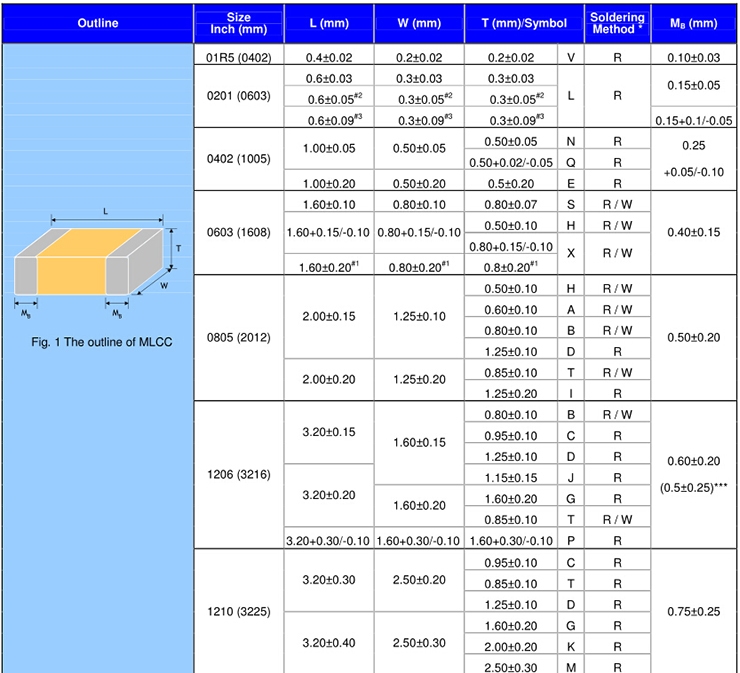

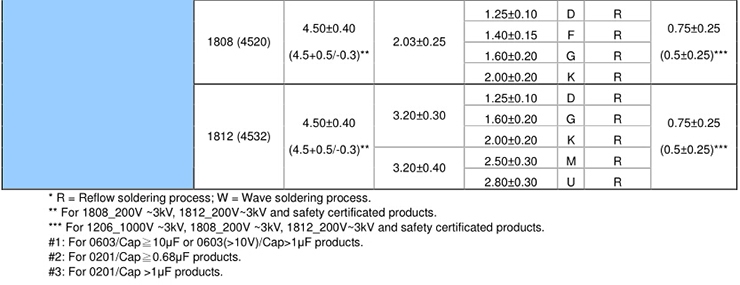

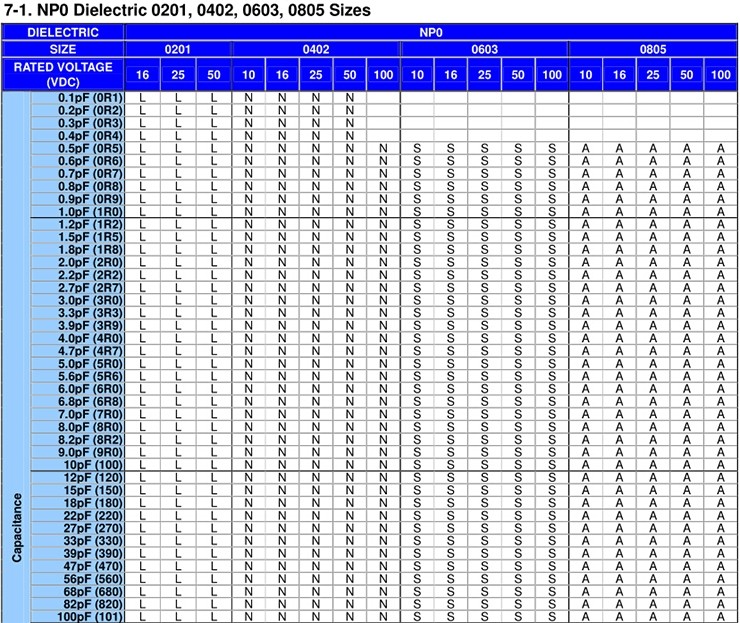

華新科0402/1005 貼片電容 片容 貼片電容器 電路設計
2-1 Operating temperature
Operating temperature should be followed strictly within this specification, especially be careful
with maximum temperature.
1) Do not use capacitor above the maximum allowable operating temperature.
2) Surface temperature including self heating should be below maximum operating temperature.
(Due to dielectric loss, capacitor will heat itself when AC is applied. Especially at high frequencies
around its SRF, the heat might be so extreme that it may damage itself or the surrounding area.
Please design the circuit so that the maximum temperature of the capacitor including the self
heating to be below the maximum allowable operating temperature.
Temperature rise shall be below 20℃)
2-2 Operating voltage
1) Operating voltage across the terminals should be below the rated voltage.
When AC and DC are super imposed, the peak must be below the rated voltage. With AC or pulse
overshooting, Vp-p must be below the rated voltage.
--------------(1)&(2)
AC or Pulse with overshooting, Vp-p must be below the rated voltage.
----------(3),(4)&(5)
When the voltage is started to apply to the circuit or it is stopped applying, the irregular voltage
may be generated for a transit period because of resonance or switching. Be sure to use a
capacitor within rated voltage containing these irregular voltage.
2) Even below the rated voltage, if repetitive high frequency AC or pulse is applied, the reliability of the
capacitor may be reduced.
3) Voltage derating will greatly reduce the failure rate. Since the failure rate follows the 3 power law of
voltage, the failure rate used under Uw with UR rated product will be lowered as (Uw/UR) 3 .
