超低待機功耗產品系列
Product Number | Standby Power | HV Startup | Max Vdd | OTP | Load OVP | OLP | Brownout | VDD OVP | Operation Frequency | Frequency Shuffling | Light Load Optimizer | Power on Soft-start |
OB5269 | <100mW | HV | 26V | L | L | A | -- | Y | 65kHz | Y | Y | Y |
OB5269B | <50mW | HV | 26V | -- | -- | A | A | Y | 65kHz | Y | Y | Y |
OB2273 | <100mW | -- | 28V | L | L | A | -- | Y | 65kHz | Y | Y | Y |
OB2273A | <100mW | -- | 28V | A | A | A | -- | Y | 65kHz | Y | Y | Y |
OB2273B | <100mW | -- | 28V | -- | -- | A | A | Y | 65kHz | Y | Y | Y |
OB2273F | <100mW | -- | 28V | -- | A | A | -- | Y | External | -- | Y | Y |
OB2273N | <100mW | -- | 28V | -- | A | A | -- | Y | External | Y | Y | Y |
OB2276 | <100mW | -- | 28V | L | L | A | A | Y | 65kHz | Y | Y | Y |
OB2276A | <100mW | -- | 28V | A | A | A | A | Y | 65kHz | Y | Y | Y |
L:Latch; A:Auto-recovery
OB2273 Series
High Performance Current Mode PWM Controller
OB2273 is a highly integrated current mode PWM control IC optimized for high performance, low standby
power(less than 100mW) and cost effective offline flyback converter applications. It offers complete
protection coverage with auto-recovery including Cycle-by-Cycle current limiting (OCP), over load protection (OLP), and VDD under voltage lockout (UVLO). It also
provides the protections with latched shut down including over temperature protection (OTP), and over
voltage (fixed or adjustable) protection (OVP).
Features:
◆ Power on Soft Start Reducing MOSFET Vds Stress
◆ Frequency shuffling for EMI
◆ Extended Burst Mode Control For Improved Efficiency and Minimum Standby Power Design
◆ Audio Noise Free Operation
◆ Fixed 65KHZ Switching Frequency
◆ Comprehensive Protection Coverage
◇ VDD Under Voltage Lockout with Hysteresis (UVLO)
◇ Cycle-by-cycle over current threshold setting for constant output power limiting over universal input
voltage range
◇ Overload Protection (OLP) with auto-recovery
◇ Over Temperature Protection (OTP) with latch shut down
◇ VDD Over voltage Protection(OVP) with latch shut down
◇ Adjustable OVP through external Zener
◆ Available in SOT23-6 and DIP8 packages, RoHS compliant
Applications:
Offline AC/DC flyback converter for
◆ LED Monitor Power Supplier
◆ Netbook/Tablet PC Adapter
◆ Battery Charger
◆ Power Adapter
◆ Set-Top Box Power Supplies
◆ Open-frame SMPS
Device | VDD OVP | OTP | Brownout | Frequency |
OB2273 | Latch | Latch | -- | 65kHz |
OB2273A | Auto-recovery | Auto-recovery | -- | 65kHz |
OB2273F | Auto-recovery | -- | -- | External |
OB2273B | Auto-recovery | -- | Y | 65kHz |
Typical Application:
OB5269 Series
High Voltage Green Mode PWM Controller
OB5269 is a high-performance current mode PWM controller with integrated HV start-up ，optimized for high performance, low standby power and cost effective offline flyback converter applications.
VDD low startup current and low operating current contribute to 100mW input power on standby design.
OB5269 offers complete protection coverage with auto-recovery including Cycle-by-Cycle current limiting (OCP), over load protection (OLP), and VDD under voltage lockout (UVLO). It also
provides the protections with latched shut down including over temperature protection (OTP), and over
voltage (fixed or adjustable) protection (OVP).
Features:
◆ High Voltage Startup Circuit
◆ Ultra Low Standby Power
◆ Power on Soft Start Reducing MOSFET Vds Stress
◆ Frequency shuffling for EMI
◆ Extended Burst Mode Control For Improved Efficiency and Minimum Standby Power Design
◆ Fixed 65KHZ Switching Frequency
◆ Comprehensive Protection Coverage
◇ VDD Under Voltage Lockout with Hysteresis (UVLO)
◇ Cycle-by-cycle over current threshold setting for constant output power limiting over universal input
voltage range
◇ Overload Protection (OLP) with auto-recovery
◇ Over Temperature Protection (OTP) with latch shut down
◇ VDD Over voltage Protection(OVP) with latch shut down
◇ Adjustable OVP through external Zener
◆ Available in SOP8 package, RoHS compliant
Applications:
◆ Notebook Adapter
◆ LED Monitor Power
◆ Battery Charger
◆ Power Adaptor
◆ Open-frame SMPS
Device | Brownout Function | OTP | Load OVP | Standby Power |
OB5269 | -- | Latch | Latch | <100mW |
OB5269B | Auto-recovery | -- | -- | <50mW |
Typical Application:
OB522X Series
High Voltage Green Mode Power Switch
OB5222 is a highly integrated current mode PWM Power Switch with high voltage start up, optimized for
high performance, low standby power consumption and cost effective offline flyback converter
applications.PWM switching frequency at normal operation is internally fixed . At no load or light load
condition, the IC operates in extended ‘burst mode’ to minimize switching loss. Very low standby
power consumption and very high conversion efficiency is thus achieved. Excellent EMI performance
is achieved with On-Bright proprietary frequency shuffling technique.
Features:
◆ Ultra Low Standby Power
◆ High Voltage Startup
◆ Power on Soft Start Reducing MOSFET Vds Stress
◆ Frequency shuffling for EMI
◆ Extended Burst Mode Control For Improved Efficiency and Minimum Standby Power
◆ Audio Noise Free Operation
◆ Fixed 65KHZ Switching Frequency
◆ Comprehensive Protection Coverage
◇ VDD Under Voltage Lockout with Hysteresis (UVLO)
◇ Cycle-by-cycle over current protection (OCP)
◇ Overload Protection (OLP) with auto-recovery
◇ Over Temperature Protection (OTP) with latch shut down
◇ VDD Over voltage Protection(OVP) with latch shut down
◆ Available in DIP8 package, RoHS compliant
Applications:
Offline AC/DC flyback converter for
◆ PC/Sever Standby Power Supply
◆ LED TV Standby Power Supply
◆ Power Adaptor
◆ Open-frame SMPS
◆ STB Power Supply
◆ Set-Top Box Power Supply
Device | RDS(on) | Standby Power | Brownout |
OB5222 | 5Ω | <30mW | -- |
OB5225 | 2Ω | <30mW | Y |
Typical Application:
OB2276 Series
High Performance Current Mode PWM Controller
OB2276 is a highly integrated current mode PWM control IC optimized for high performance, low standby
power and cost effective offline flyback converter applications.
Features:
◆ Power on Soft Start Reducing MOSFET Vds Stress
◆ Frequency shuffling for EMI
◆ Extended Burst Mode Control For Improved Efficiency and Minimum Standby Power Design
◆ Audio Noise Free Operation
◆ Fixed 65KHZ Switching Frequency
◆ Comprehensive Protection Coverage
◇ VDD Under Voltage Lockout with Hysteresis (UVLO)
◇ Cycle-by-cycle over current threshold setting for constant output power limiting over universal input
voltage range
◇ Overload Protection (OLP) with auto-recovery
◇ Brownout Protection with auto-recovery
◇ Fixed VDD OVP with latch shut down
◇ Adjustable VDD OVP with latch shut down
◇ Over Temperature Protection with latch shut down
◇ Output Over Voltage Protection with latch shut down
◆ Available in SOP8 packages, RoHS compliant
Applications:
Offline AC/DC flyback converter for
◆ Battery Charger
◆ Power Adapter
◆ Set-Top Box Power Supplies
◆ Open-frame SMPS
Device | VDD OVP | OTP | Load OVP |
OB2276 | Latch | Latch | Latch |
OB2276A | Auto-recovery | Auto-recovery | Auto-recovery |

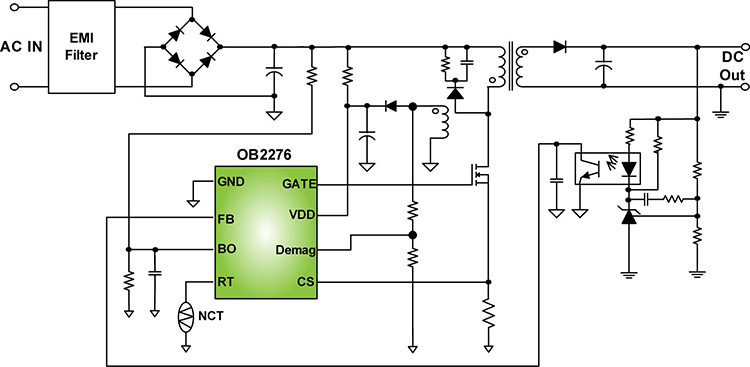

Typical Application:
