順絡片式鉭電容基本參數：
| 品牌 | 順絡 | 型號 | TC211 | 介質材料 | 鉭電解 |
| 應用范圍 | 旁路 | 外形 | 方塊狀 | 功率特性 | 中功率 |
| 頻率特性 | 中頻 | 調節方式 | 固定 | 引線類型 | 無引線 |
| 允許偏差 | ±2（%） | 耐壓值 | 50（V） | 等效串聯電阻(ESR) | 0（mΩ） |
| 標稱容量 | 100（uF） | 損耗 | 0 | 額定電壓 | 25（V） |
| 絕緣電阻 | 0.21（mΩ） | 溫度系數 | 0 |

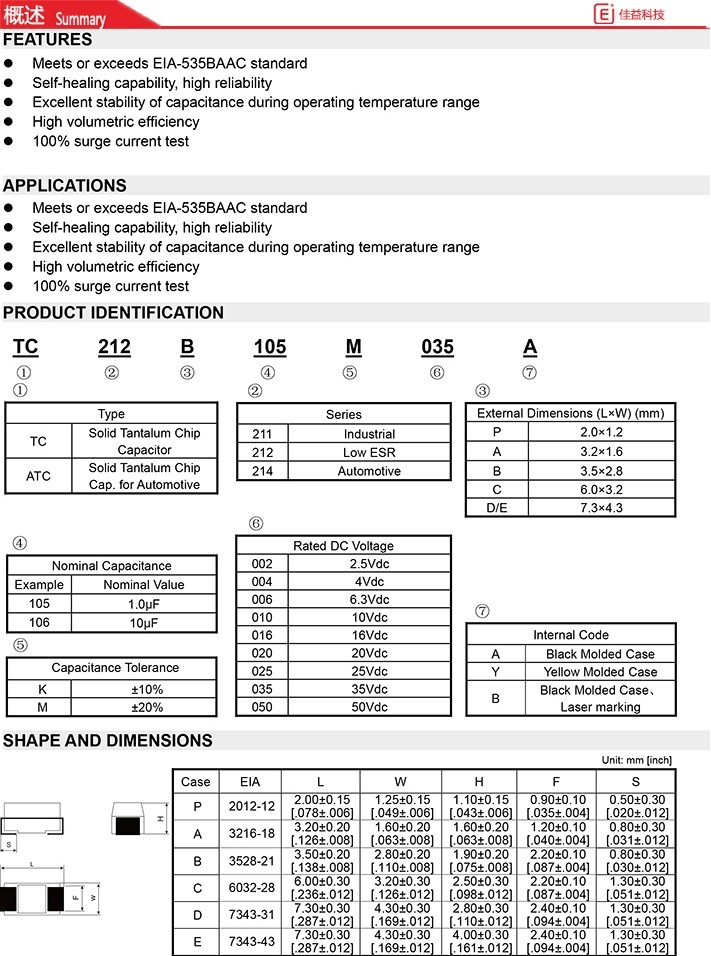

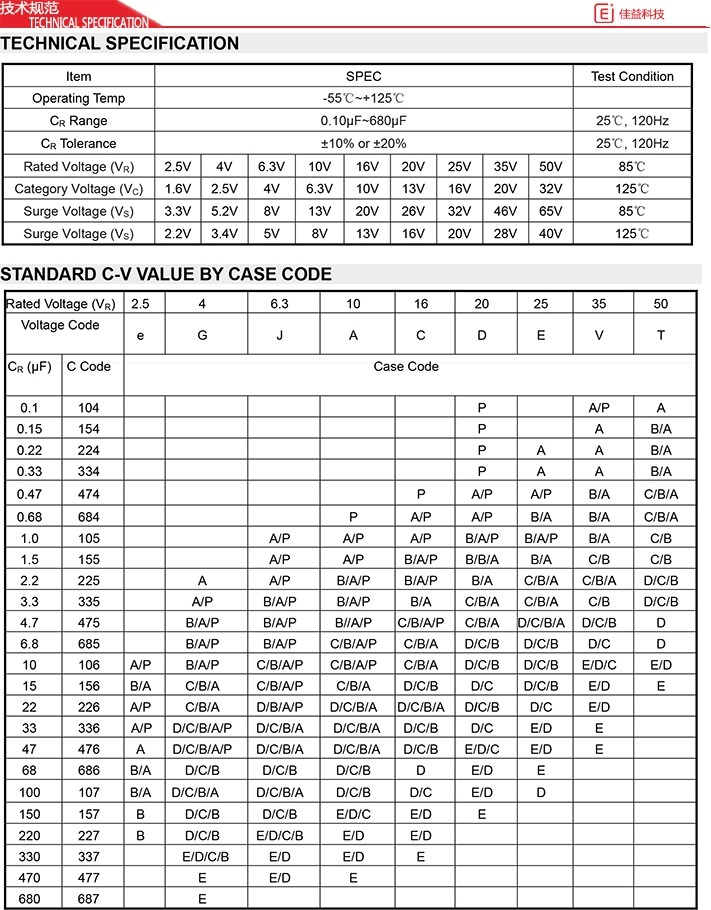

規格：
| TC212 TYPE | |||||
Capacitance (MF) | Case | Part Number | DCL (MA ) +25 °C Max. | DF (%) +25 C 120 Hz Max. | ESR(O) +25 C 100kHz Max. |
| 2.2 | A | TC212A225?006口 | 0.5 | 6.0 | 6.0 |
| 3.3 | P | TC212P335?006□ | 0.5 | 6.0 | 5.0 |
| 3.3 | A | TC212A335?006 口 | 0.5 | 6.0 | 6.0 |
| 4.7 | P | TC212P475?006□ | 0.5 | 6.0 | 6.0 |
| 4.7 | A | TC212A475?006 口 | 0.5 | 6.0 | 4.0 |
| 6.8 | P | TC212P685?006口 | 0.5 | 6.0 | 8.0 |
| 6.8 | A | TC212A685?006 口 | 0.5 | 6.0 | 3.5 |
| 6.8 | B | TC212B685?006□ | 0.5 | 6.0 | 3.0 |
| 10.0 | P | TC212P106?006□ | 0.63 | 8.0 | 6.0 |
| 10.0 | A | TC212A106?006□ | 0.63 | 6.0 | 2.0 |
| 10.0 | B | TC212B106?006口 | 0.63 | 6.0 | 1.0 |
| 15.0 | P | TC212P156?006□ | 0.94 | 10.0 | 5.0 |
| 15.0 | A | TC212A156?006□ | 0.94 | 6.0 | 2.0 |
| 15.0 | B | TC212B156?006□ | 0.94 | 6.0 | 0.7 |
| 22.0 | P | TC212P226?006□ | 1.3 | 18.0 | 4.0 |
| 22.0 | A | TC212A226?006口 | 1.38 | 6.0 | 2.5 |
| 22.0 | B | TC212B2260006□ | 1.38 | 6.0 | 0.8 |
| 33.0 | A | TC212A336?006 口 | 2.07 | 8.0 | 1.5 |
| 33.0 | B | TC212B3360006口 | 2.07 | 6.0 | 0.8 |
| 33.0 | C | TC212C3360006□ | 2.07 | 6.0 | 0.3 |
| 47.0 | A | TC212A476〇)006口 | 2.96 | 8.0 | 2.5 |
| 47.0 | B | TC212B4760006□ | 2.96 | 6.0 | 0.5 |
| 47.0 | C | TC212C4760006□ | 2.96 | 6.0 | 0.3 |
| 68.0 | B | TC212B6860006口 | 4.28 | 10.0 | 0.65 |
| 68.0 | C | TC212C68600060 | 4.28 | 6.0 | 0.2 |
| 68.0 | D | TC212D68600060 | 4.28 | 6.0 | 0.2 |
| 100.0 | A | TC212A1070006口 | 6.3 | 20.0 | 2.0 |
| 100.0 | B | TC212B1070006口 | 6.3 | 10.0 | 1.5 |
| 100.0 | C | TC212C10700060 | 6.3 | 8.0 | 0.3 |
| 100.0 | D | TC212D10700060 | 6.3 | 8.0 | 0.2 |
| 150.0 | B | TC212B15700060 | 9.45 | 15.0 | 0.6 |
| 150.0 | C | TC212C15700060 | 9.45 | 8.0 | 0.3 |
| 150.0 | D | TC212D15700060 | 9.45 | 8.0 | 0.2 |
| 220.0 | B | TC212B2270006口 | 13.86 | 18.0 | 0.7 |
| 220.0 | C | TC212C22700060 | 13.86 | 8.0 | 0.3 |
| 220.0 | D | TC212D22700060 | 13.86 | 8.0 | 0.15 |
| 220.0 | E | TC212E2270006口 | 13.86 | 8.0 | 0.15 |
| 330.0 | D | TC212D33700060 | 20.79 | 8.0 | 0.15 |
| 330.0 | E | TC212E3370006口 | 20.79 | 8.0 | 0.15 |
| 470.0 | D | TC212D47700060 | 29.61 | 12.0 | 0.15 |
| 470.0 | E | TC212E47700060 | 29.61 | 10.0 | 0.12 |
| 10V, +85°C (6.3V @+125°C) | |||||
| 0.68 | P | TC212P68400100 | 0.5 | 4.0 | 15.0 |
| 1.0 | P | TC212P1050010口 | 0.5 | 10.0 | 10.0 |
| 1.0 | A | TC212A1050010口 | 0.5 | 4.0 | 8.0 |
| 1.5 | P | TC212P1550010口 | 0.5 | 10.0 | 6.0 |
| 1.5 | A | TC212A1550010口 | 0.5 | 6.0 | 6.0 |
| 2.2 | P | TC212P22500100 | 0.5 | 6.0 | 8.0 |
| 2.2 | A | TC212A2250010口 | 0.5 | 6.0 | 6.0 |
| 3.3 | P | TC212P3350010口 | 0.5 | 6.0 | 10.0 |
| 3.3 | A | TC212A3350010口 | 0.5 | 6.0 | 4.0 |
Capacitance (MF) | Case | Part Number | DCL (MA ) +25 C Max. | DF (%) +25 C 120 Hz Max. | ESR(O) +25 C 100kHz Max. |
| 4.7 | P | TC212P4750010口 | 0.5 | 6.0 | 8.0 |
| 4.7 | A | TC212A4750010口 | 0.5 | 6.0 | 3.0 |
| 4.7 | B | TC212B4750010口 | 0.5 | 6.0 | 1.5 |
| 6.8 | P | TC212P6850010口 | 0.68 | 8.0 | 3.0 |
| 6.8 | A | TC212A6850010口 | 0.68 | 6.0 | 3.0 |
| 6.8 | B | TC212B6850010口 | 0.68 | 6.0 | 1.2 |
| 10.0 | P | TC212P1060010口 | 1.0 | 15.0 | 6.0 |
| 10.0 | A | TC212A1060010口 | 1.0 | 6.0 | 1.8 |
| 10.0 | B | TC212B1060010口 | 1.0 | 6.0 | 0.8 |
| 10.0 | C | TC212C10600100 | 1.0 | 6.0 | 0.6 |
| 15.0 | A | TC212A15600100 | 1.5 | 6.0 | 4.0 |
| 15.0 | B | TC212B1560010口 | 1.5 | 6.0 | 0.7 |
| 15.0 | C | TC212C15600100 | 1.5 | 6.0 | 0.5 |
| 22.0 | A | TC212A22600100 | 2.2 | 8.0 | 2.5 |
| 22.0 | B | TC212B22600100 | 2.2 | 6.0 | 1.0 |
| 22.0 | C | TC212C22600100 | 2.2 | 6.0 | 0.4 |
| 33.0 | A | TC212A3360010口 | 3.3 | 15.0 | 4.0 |
| 33.0 | B | TC212B3360010口 | 3.3 | 6.0 | 1.0 |
| 33.0 | C | TC212C33600100 | 3.3 | 6.0 | 0.4 |
| 33.0 | D | TC212D33600100 | 3.3 | 6.0 | 0.25 |
| 47.0 | A | TC212A4760010口 | 4.7 | 15.0 | 1.5 |
| 47.0 | B | TC212B4760010口 | 4.7 | 6.0 | 0.65 |
| 47.0 | C | TC212C47600100 | 4.7 | 6.0 | 0.30 |
| 47.0 | D | TC212D47600100 | 4.7 | 6.0 | 0.22 |
| 68.0 | B | TC212B6860010口 | 6.8 | 10.0 | 1.5 |
| 68.0 | C | TC212C68600100 | 6.8 | 6.0 | 0.30 |
| 68.0 | D | TC212D68600100 | 6.8 | 6.0 | 0.20 |
| 100.0 | B | TC212B1070010口 | 10.0 | 15.0 | 1.0 |
| 100.0 | C | TC212C10700100 | 10.0 | 8.0 | 0.20 |
| 100.0 | D | TC212D10700100 | 10.0 | 8.0 | 0.15 |
| 150.0 | C | TC212C15700100 | 15.0 | 10.0 | 0.70 |
| 150.0 | D | TC212D15700100 | 15.0 | 8.0 | 0.15 |
| 150.0 | E | TC212E1570010口 | 15.0 | 8.0 | 0.15 |
| 220.0 | D | TC212D22700100 | 22.0 | 8.0 | 0.15 |
| 220.0 | E | TC212E22700100 | 22.0 | 8.0 | 0.15 |
| 330.0 | D | TC212D33700100 | 33.0 | 10.0 | 0.15 |
| 330.0 | E | TC212E3370010口 | 33.0 | 10.0 | 0.2 |
| 470.0 | E | TC212E4770010口 | 47.0 | 10.0 | 0.2 |
| 16V, +85C (10V @+125C) | |||||
| 0.47 | P | TC212P47400160 | 0.5 | 6.0 | 15.0 |
| 0.68 | P | TC212P68400160 | 0.5 | 6.0 | 15.0 |
| 1.0 | P | TC212P1050016口 | 0.5 | 6.0 | 10.0 |
| 1.0 | A | TC212A1050016口 | 0.5 | 4.0 | 8.0 |
| 1.5 | P | TC212P1550016口 | 0.5 | 6.0 | 10.0 |
| 1.5 | A | TC212A1550016口 | 0.5 | 6.0 | 8.0 |
| 2.2 | P | TC212P22500160 | 0.5 | 6.0 | 15.0 |
| 2.2 | A | TC212A2250016口 | 0.5 | 6.0 | 6.0 |
| 2.2 | B | TC212B2250016口 | 0.5 | 6.0 | 3.0 |
| 3.3 | A | TC212A3350016口 | 0.52 | 6.0 | 5.0 |
| 3.3 | B | TC212B3350016口 | 0.52 | 6.0 | 2.5 |
| 4.7 | P | TC212P4750016口 | 0.8 | 18.0 | 10.0 |
