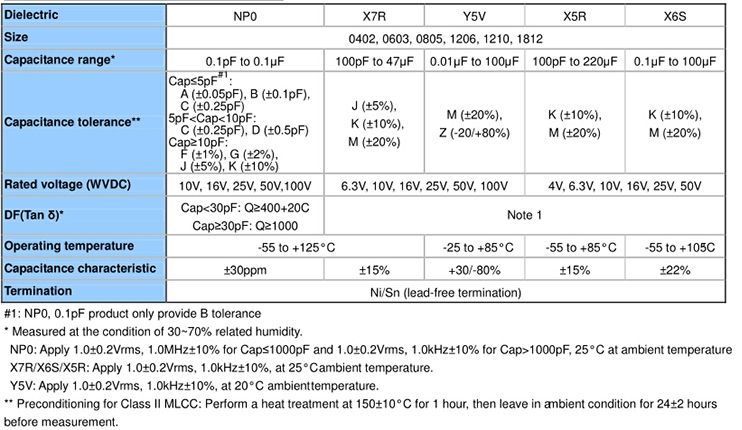

華新科0805/2012貼片電容參數
| 品牌 | WALSIN/華新科 | 型號 | 0805/2012 | 介質材料 | 陶瓷(瓷介) |
| 應用范圍 | 低壓 | 外形 | 方塊狀 | 功率特性 | 小功率 |
| 頻率特性 | 低頻 | 調節方式 | 固定 | 引線類型 | 無引線 |
| 允許偏差 | ±5（%） | 耐壓值 | 50（V） | 等效串聯電阻(ESR) | 0（mΩ） |
| 標稱容量 | 100pF~220uF（uF） | 損耗 | 0 | 額定電壓 | 6.3（V） |
| 絕緣電阻 | 0（mΩ） | 溫度系數 | 0 |
華新科0805/2012 貼片電容 片容 貼片電容器清洗
1) If an unsuitable cleaning fluid is used, flux residue or some foreign article may stick to chip capacitor
surface causing deteriorated performance, especially insulation resistance.
2) If the cleaning condition is not suitable, it may damage the chip capacitor.
2-1) Insufficient washing
(1) Lead wire and terminal electrodes may corrode due to Halogen in the flux.
(2) Halogen in the flux may adhere on the surface of capacitor, and lower the insulation resistance.
(3) Water soluble flux has higher tendency to have the above mentioned problems (1) and (2).
2-2) Excessive washing
When ultrasonic cleaning is used, excessively high ultrasonic energy output can affect the
connection between the ceramic chip capacitor’s body and the terminal electrode. To avoid this,
use the following recommended condition.
Power : 20W/l max.
Frequency : 40kHz max.
Washing time : 5 minutes max.
2-3) If the cleaning fluid is contaminated, the density of Halogen increases, and it may bring the same
